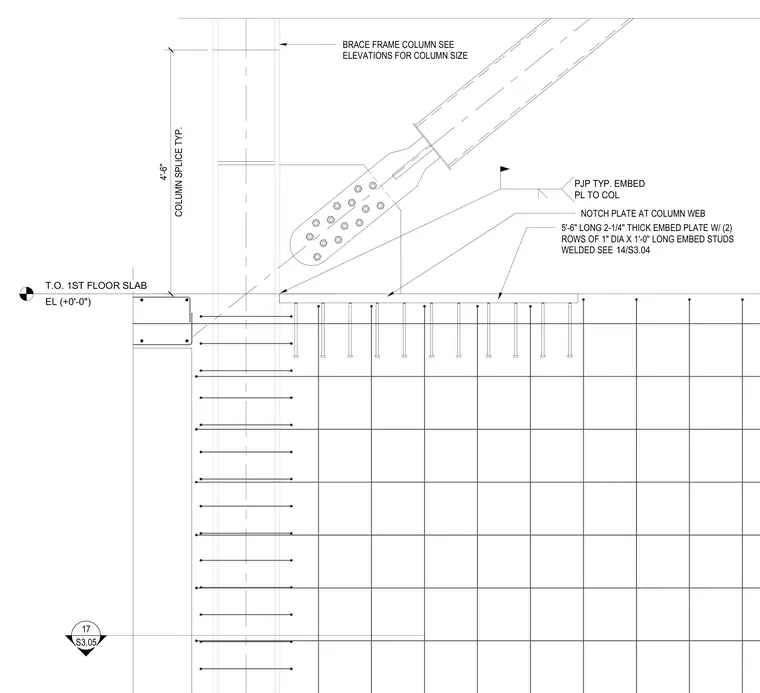

A structural steel brace frame column connects to a heavy embedded base plate anchored into the first floor concrete slab. The connection incorporates a notched plate at the column web and a gusset plate fastened with multiple bolts. A column splice is detailed at four feet six inches above the floor level. The large embed plate measures five feet six inches long and two and one-quarter inches thick, welded to the column with partial joint penetration welds and anchored by two rows of one-inch diameter by one-foot long embed studs.
BRACE FRAME COLUMN SEE ELEVATIONS FOR COLUMN SIZE EL (+0'-0") T.O. 1ST FLOOR SLAB 5'-6" LONG 2-1/4" THICK EMBED PLATE W/ (2) ROWS OF 1" DIA X 1'-0'' LONG EMBED STUDS WELDED SEE PJP TYP. EMBED PL TO COL COLUMN SPLICE TYP. 4'-6" NOTCH PLATE AT COLUMN WEB 14/S3.04 17 S3.05
