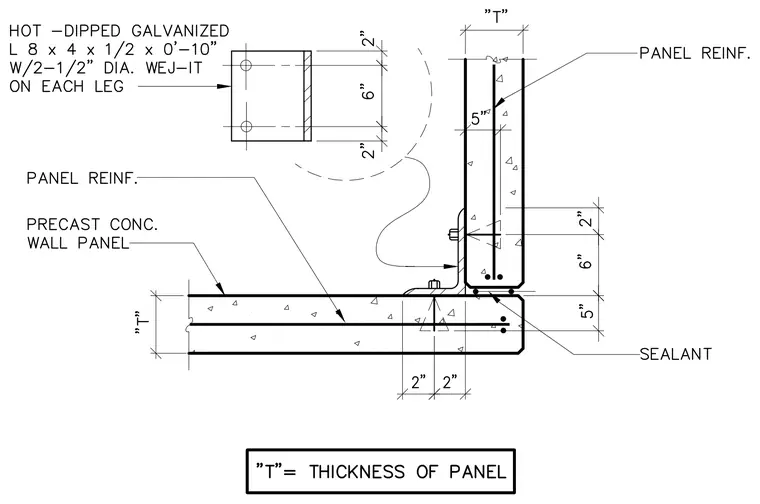

Precast concrete wall panels meet at a 90-degree corner joint sealed with exterior sealant. A hot-dipped galvanized angle measuring 8x4x1/2 by 0'-10" long spans the corner connection, secured to each panel with two 1/2-inch diameter Wej-It wedge anchors. Panel reinforcement runs continuously through the precast concrete panels, which feature a variable thickness designated as "T".
