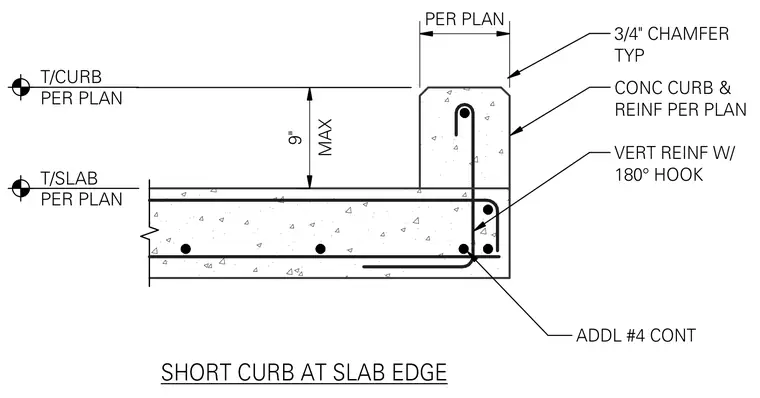

A concrete curb is cast monolithically at the edge of a concrete slab with dimensions sized per plan and a maximum height of 9 inches. Vertical reinforcement with a 180-degree hook extends from the slab into the curb, complemented by continuous additional number 4 rebar. The exterior corner of the curb features a three-quarter inch typical chamfer. Both the top of the curb and top of the slab elevations are located per plan.
PER PLAN MAX 9" T/CURB PER PLAN T/SLAB PER PLAN 3/4" CHAMFER TYP CONC CURB & REINF PER PLAN VERT REINF W/ 180° HOOK ADDL #4 CONT SHORT CURB AT SLAB EDGE
