Reinforced concrete wall details show lintels, jambs, and top-of-wall conditions with specific lap splices, U-bars, and dowels extending from wall footings. Lintel reinforcing consists of two number six bars for openings less than five feet wide and two number seven bars for openings between five feet one inch and seven feet wide, with standard hooks provided where bars cannot be extended. Jamb bars extend floor to floor or floor to roof where openings exceed four feet in width. Wall reinforcing utilizes typical U-bars and standard hooks at top and bottom with a minimum of two number five bars.

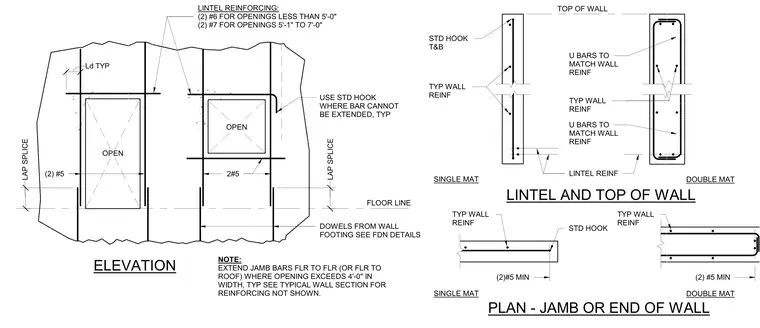

ELEVATION LINTEL AND TOP OF WALL PLAN - JAMB OR END OF WALL SINGLE MAT OPEN 2#5 OPEN FLOOR LINE LINTEL REINF SINGLE MAT DOUBLE MAT DOUBLE MAT TOP OF WALL LINTEL REINFORCING: (2) #6 FOR OPENINGS LESS THAN 5'-0" (2) #7 FOR OPENINGS 5'-1" TO 7'-0" USE STD HOOK WHERE BAR CANNOT BE EXTENDED, TYP DOWELS FROM WALL FOOTING SEE FDN DETAILS NOTE: EXTEND JAMB BARS FLR TO FLR (OR FLR TO ROOF) WHERE OPENING EXCEEDS 4'-0" IN WIDTH, TYP SEE TYPICAL WALL SECTION FOR REINFORCING NOT SHOWN. TYP WALL REINF STD HOOK U BARS TO MATCH WALL REINF TYP WALL REINF U BARS TO MATCH WALL REINF STD HOOK T&B (2) #5 MIN (2)#5 MIN TYP WALL REINF TYP WALL REINF Ld TYP LAP SPLICE LAP SPLICE (2) #5
