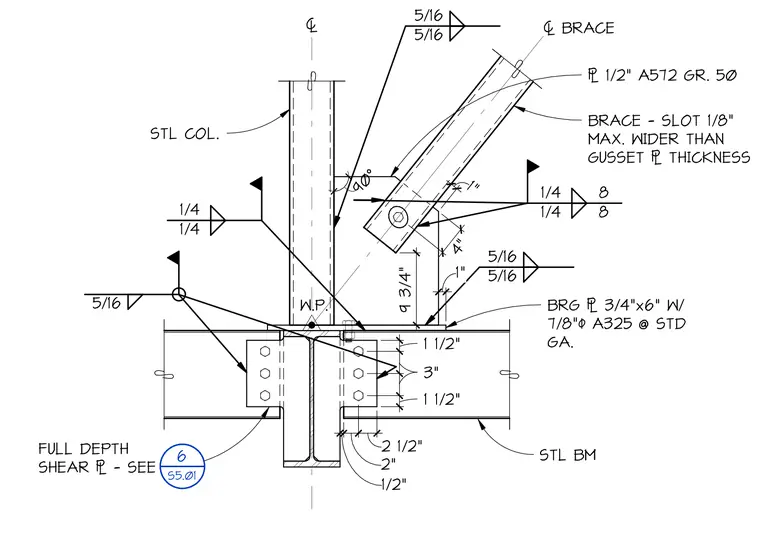

The brace connects to a one-half inch thick A572 Grade 50 gusset plate slotted one-eighth inch maximum wider than the gusset plate thickness. A three-quarter inch by six inch bearing plate with seven-eighths inch diameter A325 bolts at standard gauge supports the connection. The structural steel beam connects via a full depth shear plate. Fillet welds of five-sixteenths inch and one-quarter inch size secure the gusset plate and framing members.
STL BM W.P. 1/4 1/4 BRG ' 3/4"x6" W/ 7/8". A325 @ STD GA. BRACE - SLOT 1/8" MAX. WIDER THAN GUSSET ' THICKNESS ' 1/2" A572 GR. 50 90° 1" 4" 5/16 5/16 1/4 8 1/4 8 9 3/4" 1" FULL DEPTH SHEAR ' - SEE 6 S5.01 STL COL. * BRACE 5/16 1/2" 2" 2 1/2" 1 1/2" 1 1/2" 3" * 5/16 5/16
