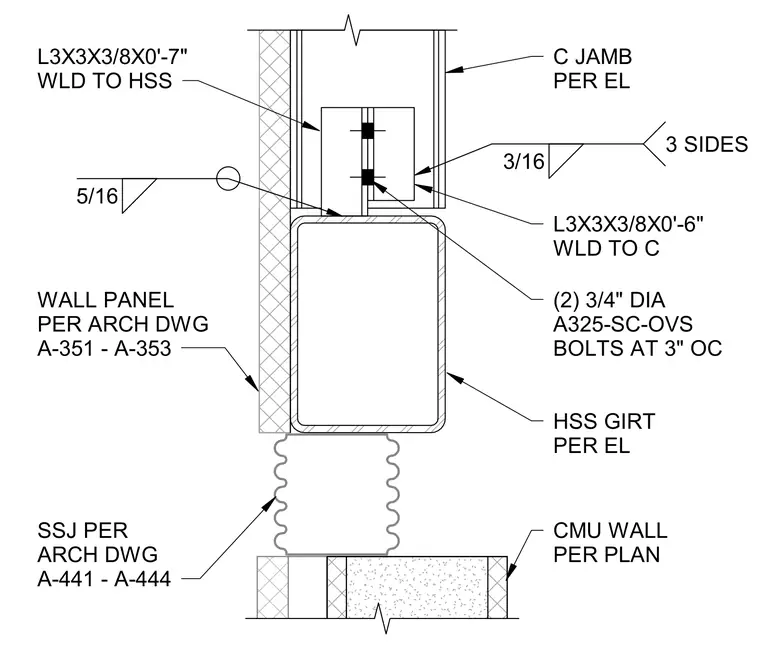

An L3x3x3/8-inch angle measuring 7 inches long is welded to the hollow structural section girt using a 5/16-inch fillet weld. A mating L3x3x3/8-inch angle measuring 6 inches long is welded to the channel jamb with a 3/16-inch fillet weld on three sides. These two angles are connected using two 3/4-inch diameter A325 slip-critical oversized bolts spaced at 3 inches on center. The assembly coordinates with exterior wall panels and a concrete masonry unit wall per architectural drawings.
3/16 3 SIDES 5/16 HSS GIRT PER EL C JAMB PER EL L3X3X3/8X0'-7" WLD TO HSS L3X3X3/8X0'-6" WLD TO C (2) 3/4" DIA A325-SC-OVS BOLTS AT 3" OC WALL PANEL PER ARCH DWG A-351 - A-353 CMU WALL PER PLAN SSJ PER ARCH DWG A-441 - A-444
