Typical Steel Beam Bearing on Masonry Wall

Materials

Concrete Masonry / CMU Metal (misc.)

Elements

Beams Walls Decks Anchors / Embeds

Connections

Embed Plate

About this detail

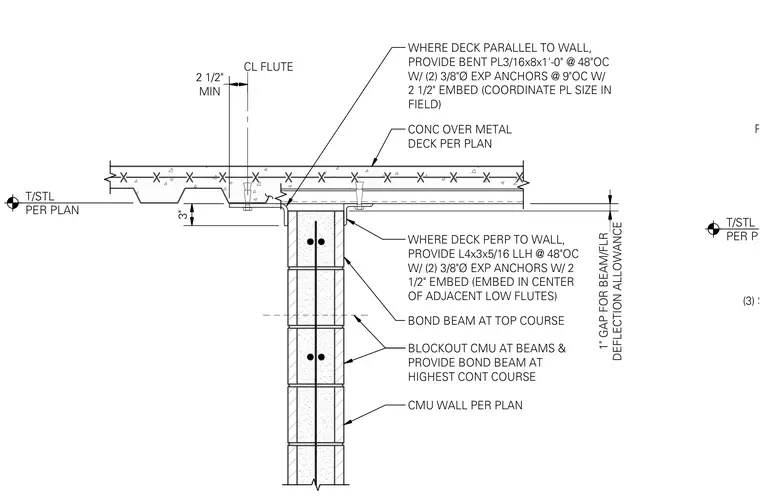

A structural steel beam bears on a concrete masonry unit wall supporting a concrete over metal deck floor system. Where the metal deck runs parallel to the wall, a bent plate measuring three-sixteenths by eight inches by one foot zero inches is spaced at forty-eight inches on center and secured with two three-eighths-inch diameter expansion anchors with two-and-one-half-inch embedment. Where the deck runs perpendicular to the wall, an L four-by-three-by-five-sixteenths loose lintel angle is provided at forty-eight inches on center with two three-eighths-inch diameter expansion anchors embedded in the center of adjacent low flutes. A top course bond beam is provided with blockout masonry units at the beams and a bond beam at the highest continuous course. The assembly incorporates a one-inch gap for beam and floor deflection allowance and a three-inch minimum clearance.
