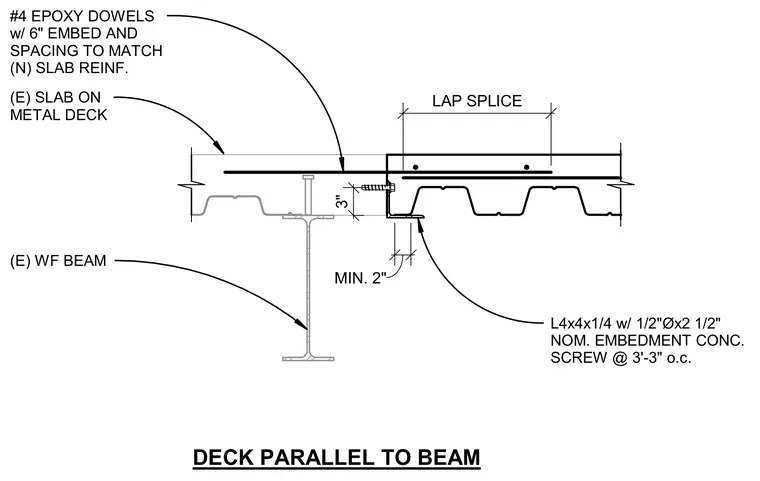

An existing wide-flange steel beam supports an existing concrete slab on metal deck where the flutes run parallel to the beam. An L4x4x1/4 angle edge form is anchored to the edge of the deck with 1/2-inch diameter by 2 1/2-inch nominal embedment concrete screws spaced at 3 feet 3 inches on center with a minimum 2-inch bearing. Number 4 epoxy dowels with a 6-inch embedment and spacing matching the new slab reinforcement extend into a lap splice at the slab edge.
DECK PARALLEL TO BEAM LAP SPLICE #4 EPOXY DOWELS w/ 6" EMBED AND SPACING TO MATCH (N) SLAB REINF. L4x4x1/4 w/ 1/2"Øx2 1/2" NOM. EMBEDMENT CONC. SCREW @ 3'-3" o.c. (E) SLAB ON METAL DECK (E) WF BEAM 3" MIN. 2"
