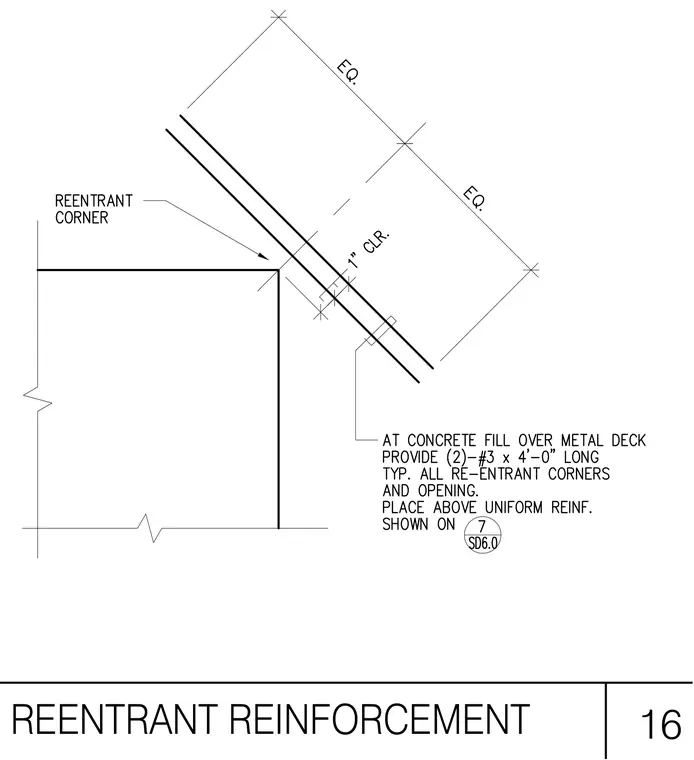

At concrete fill over metal deck, provide two number 3 by four-foot-long bars at all reentrant corners and openings. Place the reinforcement above the uniform reinforcement with equal spacing dimensions and a one-inch clearance.
