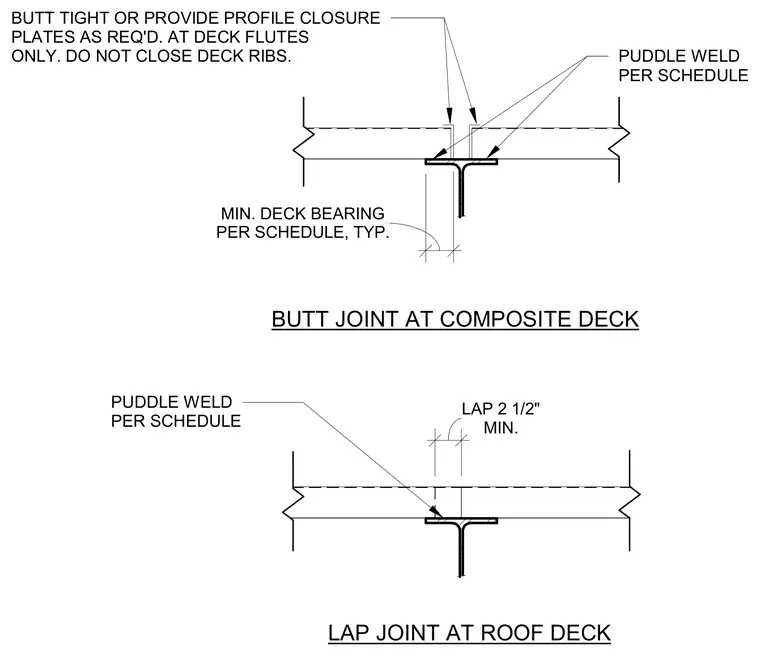

Metal roof and composite deck panels bear on structural steel framing members with specified minimum bearing lengths. End joints are installed either butt tight with optional profile closure plates at deck flutes or with a minimum two-and-a-half-inch lap joint. Puddle welds secure the metal deck directly to the supporting steel flange according to the structural schedule. Deck ribs are left unclosed except where profile closure plates are required at flutes.
BUTT JOINT AT COMPOSITE DECK LAP JOINT AT ROOF DECK BUTT TIGHT OR PROVIDE PROFILE CLOSURE PLATES AS REQ'D. AT DECK FLUTES ONLY. DO NOT CLOSE DECK RIBS. PER SCHEDULE, TYP. MIN. DECK BEARING MIN. LAP 2 1/2" PUDDLE WELD PER SCHEDULE PUDDLE WELD PER SCHEDULE
