Weld Access Hole

Materials

weld

Elements

Beams

Connections

Welded Connection

About this detail

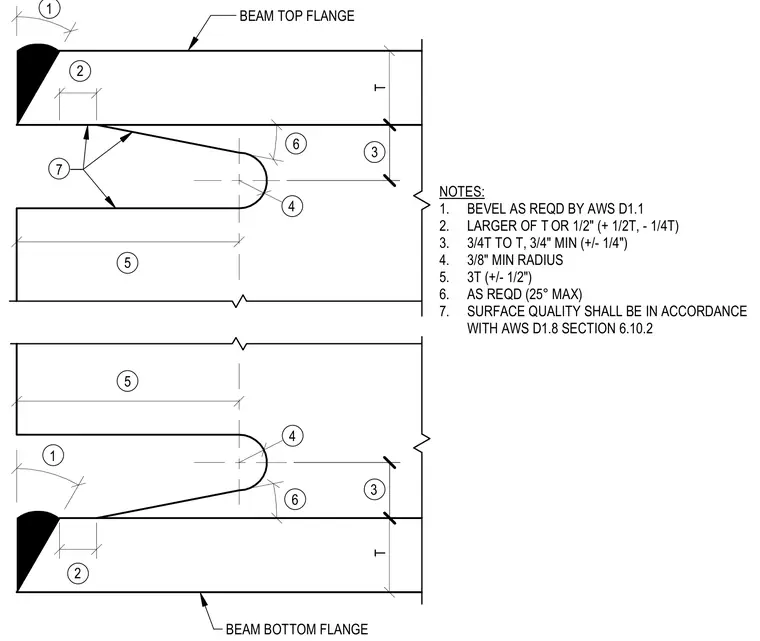

Required geometry and dimensions for weld access holes in steel beam flanges feature a minimum three-eighths-inch radius at the root, a bevel angle up to twenty-five degrees maximum, and proportions based on flange thickness T. Specific dimensions dictate the transition length, clearance from the web-to-flange intersection, and surface quality requirements conforming to AWS D1.8 Section 6.10.2. Edge preparation and bevels must comply with AWS D1.1 standards.
