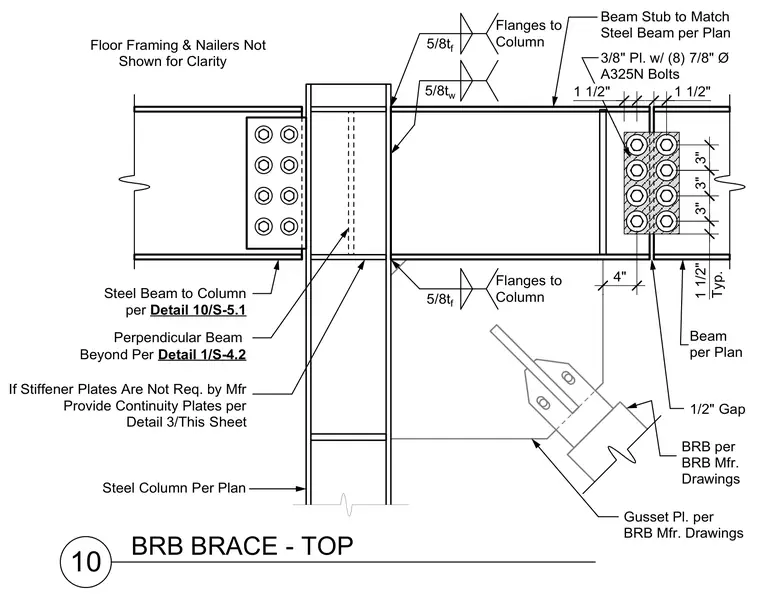

A buckling-restrained brace connects to a gusset plate welded to a steel column and beam stub assembly. A three-eighths-inch plate with eight seven-eighths-inch-diameter A325N bolts connects the beam stub to the main steel beam with a one-half-inch gap. Flanges and web weld to the column with five-eighths-inch welds. Continuity plates are provided at the column flange when stiffener plates are not required by the manufacturer.
Steel Beam to Column per Detail 10/S-5.1 BRB BRACE - TOP 5/8t f Flanges to Column 3" 3" 3" 1 1/2" Typ. 1 1/2" 4" 1/2" Gap Beam Stub to Match Steel Beam per Plan 3/8" Pl. w/ (8) 7/8" Ø A325N Bolts Beam per Plan Steel Column Per Plan Gusset Pl. per BRB Mfr. Drawings BRB per BRB Mfr. Drawings 1 1/2" 5/8t w 5/8t f Flanges to Column Floor Framing & Nailers Not Shown for Clarity 10 Perpendicular Beam Beyond Per Detail 1/S-4.2 If Stiffener Plates Are Not Req. by Mfr Provide Continuity Plates per Detail 3/This Sheet
