Structural · S-T8YMP

Joist and Girder to HSS Column Connection

Materials

Steel Metal (misc.)

Elements

Columns Beams Walls Roofs Decks

Connections

HSS Connection Welded Connection Bolted Connection Deck Attachment

About this detail

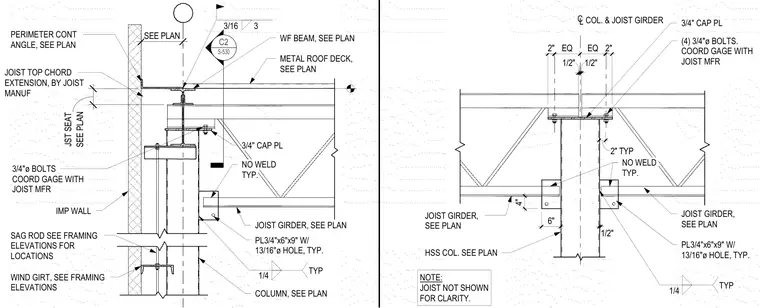

An open-web steel joist and joist girder connect to a hollow structural section column. A three-quarter-inch thick cap plate is welded to the top of the column and secured with four three-quarter-inch diameter bolts, coordinating gauge with the joist manufacturer. Side connection plates measuring three-quarters by six by nine inches with thirteen-sixteenth-inch diameter holes connect the joist girder to the column, left unwelded to the girder as noted. A wide-flange beam sits above the column supporting a metal roof deck and perimeter continuous angle. An insulated metal panel wall assembly ties into the perimeter with sag rods and wind girts located per framing elevations.
