Structural · S-T8YKY

Concrete Over Metal

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Windows Floors / Slabs Decks Arches

About this detail

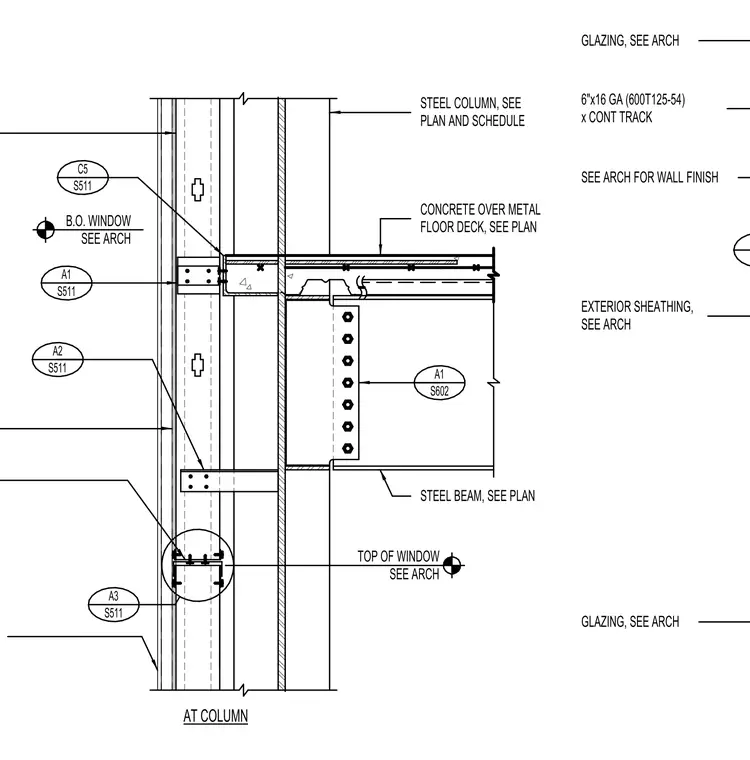

A structural steel beam frames into a steel column, sized per plan and schedule, utilizing a bolted shear tab connection. A concrete slab poured over a metal floor deck bears on the structural framing. At the exterior edge, cold-formed metal framing consisting of six-inch sixteen gauge continuous tracks accommodates window head and sill transitions per architectural drawings. Exterior sheathing and wall finishes align with the column perimeter, coordinating structural steel supports with exterior glazing systems.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
