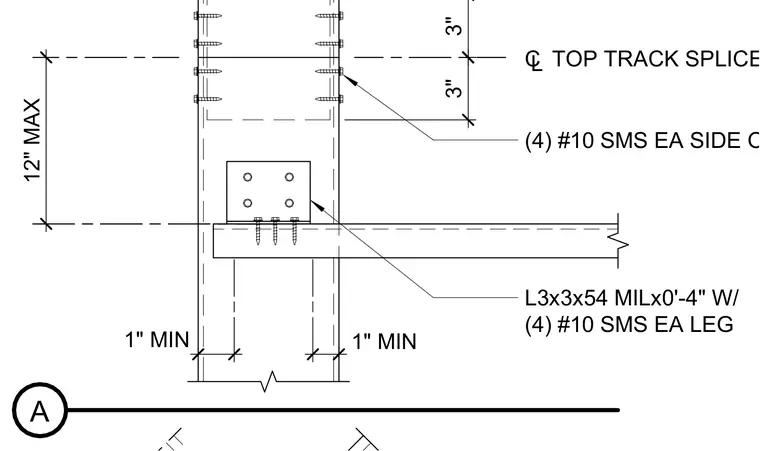

A top track splice connection in cold-formed steel framing utilizes a matching track profile nested at the joint with four number ten self-tapping sheet metal screws on each side of the splice centerline. An L3x3x54 mill-certified angle measuring zero feet four inches long bridges the connection, secured with four number ten self-tapping sheet metal screws on each leg. Dimensioning notes enforce a maximum twelve-inch spacing and one-inch minimum edge clearances.
A 12" MAX 1" MIN 1" MIN ¢ TOP TRACK SPLICE MILS AS TRACK (4) #10 SMS EA SIDE OF SPLICE 3" 3" L3x3x54 MILx0'-4" W/ (4) #10 SMS EA LEG
