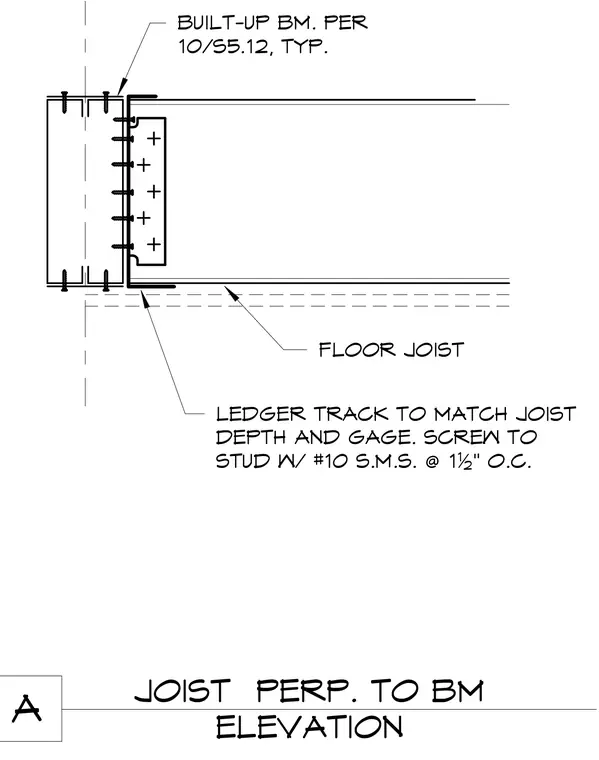

Cold-formed steel floor joists frame perpendicularly into a built-up beam using a continuous ledger track matching the joist depth and gauge. The ledger track is attached to the beam web with number 10 sheet metal screws spaced at one and one-half inches on center. The joists align with the built-up beam assembly detailed per sheet S5.12.
JOIST PERP. TO BM ELEVATION LEDGER TRACK TO MATCH JOIST DEPTH AND GAGE. SCREW TO STUD W/ #10 S.M.S. @ 1½" O.C. FLOOR JOIST BUILT-UP BM. PER 10/S5.12, TYP. A
