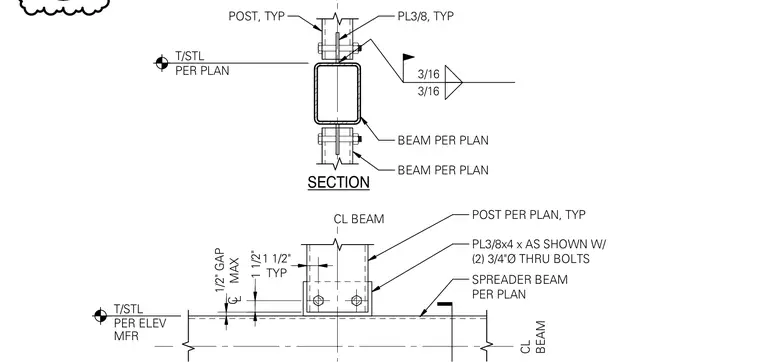

A structural steel post connects to a beam per plan using a three-eighths-inch thick vertical plate welded with three-sixteenths-inch fillet welds. Spreader beams are attached using three-eighths by four-inch plates with two three-quarter-inch diameter through bolts. A maximum one-half-inch gap is maintained between the connected steel elements. The assembly aligns with centerlines of beams and is set to elevations specified per plan.
SECTION T/STL PER ELEV MFR T/STL PER PLAN CL BEAM CL BEAM BEAM PER PLAN PL3/8, TYP BEAM PER PLAN SPREADER BEAM PER PLAN PL3/8x4 x AS SHOWN W/ (2) 3/4"Ø THRU BOLTS CL BEAM 3/16 3/16 POST, TYP MAX 1/2" GAP C L 1 1/2" POST PER PLAN, TYP TYP 1 1/2"
