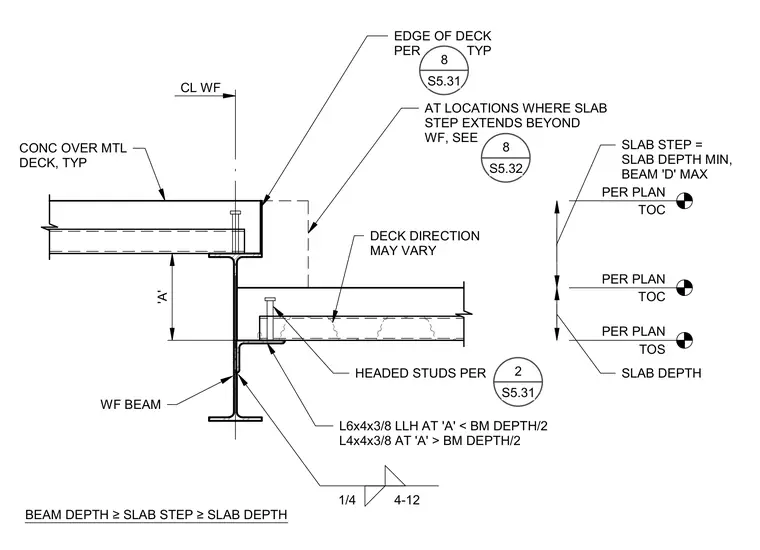

A wide-flange beam supports a concrete slab over metal deck at two different elevations, creating a vertical step condition at the web. An angle profile of L6x4x3/8 or L4x4x3/8 connects the lower slab edge to the beam web depending on dimension A relative to half the beam depth. Headed studs are provided on the metal deck per the structural plans. A fillet weld of 1/4 inch secures the connection assemblies.
TOC PER PLAN TOC PER PLAN L6x4x3/8 LLH AT 'A' < BM DEPTH/2 L4x4x3/8 AT 'A' > BM DEPTH/2 DECK DIRECTION MAY VARY TOS PER PLAN SLAB DEPTH SLAB STEP = SLAB DEPTH MIN, BEAM 'D' MAX CONC OVER MTL DECK, TYP HEADED STUDS PER EDGE OF DECK PER TYP WF BEAM BEAM DEPTH ≥SLAB STEP ≥SLAB DEPTH AT LOCATIONS WHERE SLAB STEP EXTENDS BEYOND WF, SEE 'A' 1/4 4-12 CL WF 8 S5.32 2 S5.31 8 S5.31
