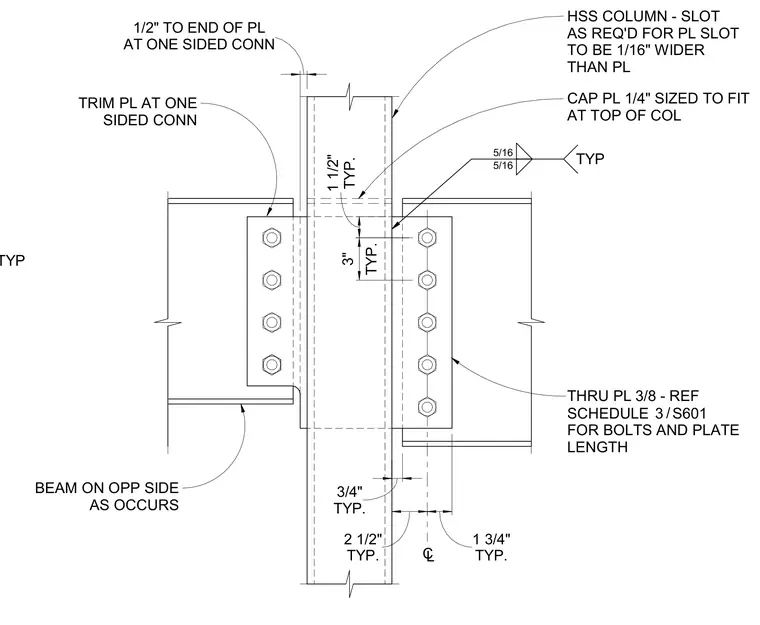

A three-eighths-inch through plate passes through a slotted hollow structural section column in this beam-to-column connection. The hollow structural section column is slotted as required for the plate, with the slot fabricated one-sixteenth-inch wider than the plate thickness. A one-quarter-inch cap plate is sized to fit at the top of the column. Beams frame into the connection from opposite sides as occurs, secured via bolts and plate lengths referenced in the structural schedule. Five-sixteenths-inch fillet welds attach the connecting elements, with plate trimming applied at one-sided configurations.
CL HSS COLUMN - SLOT AS REQ'D FOR PL SLOT TO BE 1/16" WIDER THAN PL CAP PL 1/4" SIZED TO FIT AT TOP OF COL THRU PL 3/8 - REF SCHEDULE FOR BOLTS AND PLATE LENGTH TRIM PL AT ONE SIDED CONN TYP. 3" TYP. 1 1/2" TYP. 2 1/2" TYP. 1 3/4" TYP. 3/4" 5/16 5/16 TYP AT ONE SIDED CONN 1/2" TO END OF PL BEAM ON OPP SIDE AS OCCURS / 3 S601 TYP
