W12 and W14 cross beams frame into a W18 minimum moment frame girder or drag beam. A connection plate is sized with a thickness of three-eighths of an inch for beam depths less than twelve inches, and one-half of an inch for depths greater than or equal to twelve inches, with the plate omitted where beams are less than twelve inches deep. A stiffener plate matching the thickness of the connection plate is welded to the girder web with a quarter-inch fillet weld. Additional typical bolts are spaced at three inches on center, and a minimum four-inch and five-inch clearance is maintained. This specific configuration applies where the dimension 'H' is greater than eight inches and less than or equal to twelve inches.

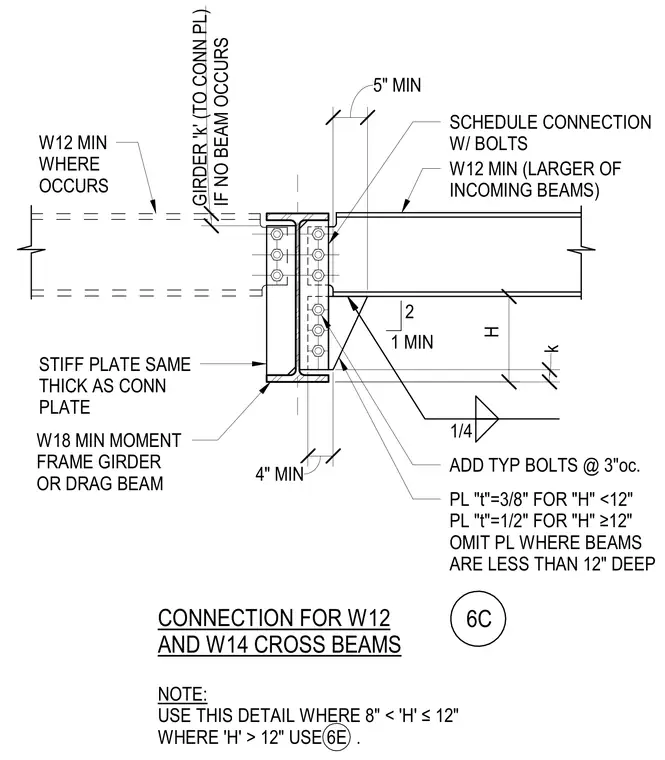

CONNECTION FOR W12 AND W14 CROSS BEAMS STIFF PLATE SAME THICK AS CONN PLATE PL "t"=3/8" FOR "H" <12" PL "t"=1/2" FOR "H" ≥12" OMIT PL WHERE BEAMS ARE LESS THAN 12" DEEP W18 MIN MOMENT FRAME GIRDER OR DRAG BEAM 2 1 MIN ADD TYP BOLTS @ 3"oc. W12 MIN WHERE OCCURS 1/4 SCHEDULE CONNECTION W/ BOLTS W12 MIN (LARGER OF INCOMING BEAMS) 4" MIN H k NOTE: USE THIS DETAIL WHERE 8" < 'H' ≤12" WHERE 'H' > 12" USE 6E . 6C GIRDER 'k' (TO CONN PL) IF NO BEAM OCCURS 5" MIN
