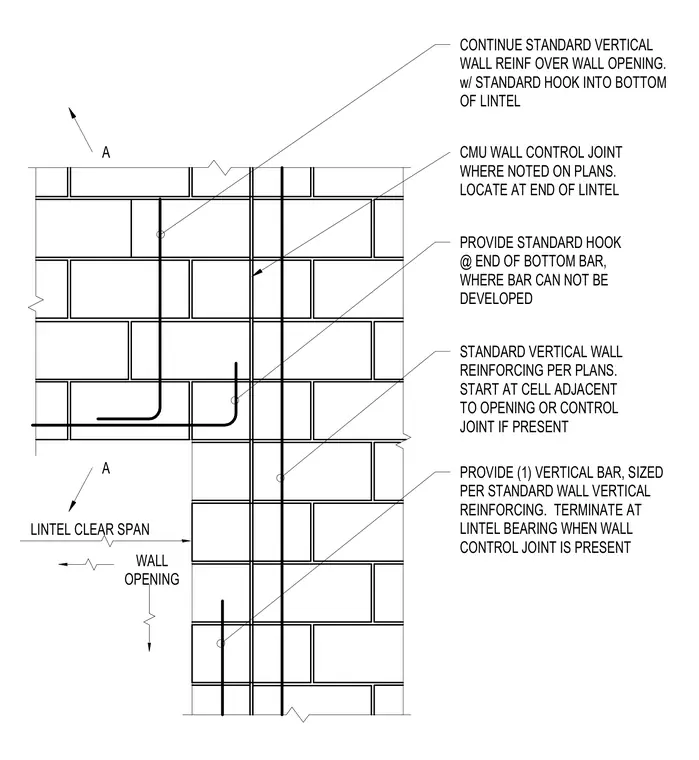

Standard vertical wall reinforcing continues over the wall opening with a standard hook into the bottom of the lintel. A concrete masonry unit wall control joint is located at the end of the lintel where noted on plans. A standard hook is provided at the end of the bottom bar where the bar cannot be fully developed. Standard vertical wall reinforcing starts at the cell adjacent to the opening or control joint if present. One vertical bar, sized per standard wall vertical reinforcing, terminates at the lintel bearing when a wall control joint is present.
CONTINUE STANDARD VERTICAL WALL REINF OVER WALL OPENING. w/ STANDARD HOOK INTO BOTTOM OF LINTEL CMU WALL CONTROL JOINT WHERE NOTED ON PLANS. LOCATE AT END OF LINTEL PROVIDE STANDARD HOOK @ END OF BOTTOM BAR, WHERE BAR CAN NOT BE DEVELOPED STANDARD VERTICAL WALL REINFORCING PER PLANS. START AT CELL ADJACENT TO OPENING OR CONTROL JOINT IF PRESENT PROVIDE (1) VERTICAL BAR, SIZED PER STANDARD WALL VERTICAL REINFORCING. TERMINATE AT LINTEL BEARING WHEN WALL CONTROL JOINT IS PRESENT A A LINTEL CLEAR SPAN WALL OPENING
