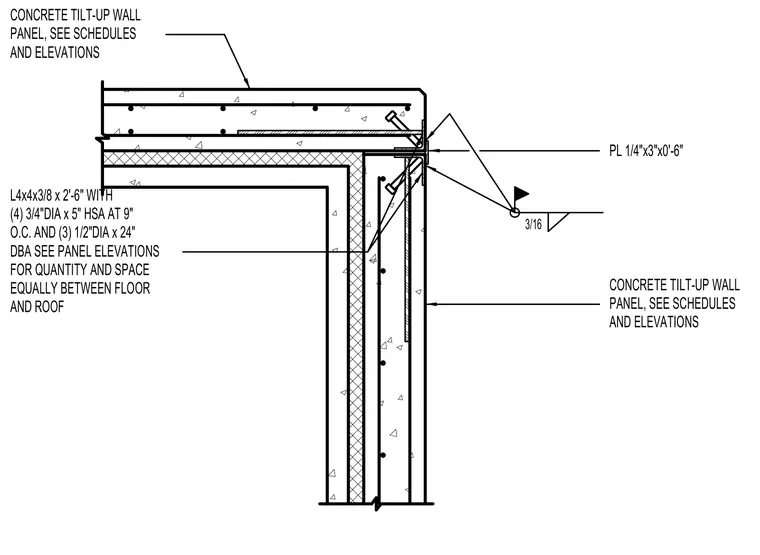

The corner assembly connects two concrete tilt-up wall panels using an L4x4x3/8 angle that is two feet six inches long. The angle is secured with four three-quarter-inch diameter by five-inch head stud anchors at nine inches on center, along with three half-inch diameter by twenty-four-inch dowel bars. A quarter-inch by three-inch plate that is six inches long ties the panels together at the mitered joint, welded with a three-sixteenths-inch fillet weld. The quantity and spacing of the dowel bars are sized per panel elevations to distribute loads equally between the floor and roof.
3/16 CONCRETE TILT-UP WALL PANEL, SEE SCHEDULES AND ELEVATIONS PL 1/4"x3"x0'-6" L4x4x3/8 x 2'-6" WITH (4) 3/4"DIA x 5" HSA AT 9" O.C. AND (3) 1/2"DIA x 24" CONCRETE TILT-UP WALL PANEL, SEE SCHEDULES AND ELEVATIONS DBA SEE PANEL ELEVATIONS FOR QUANTITY AND SPACE EQUALLY BETWEEN FLOOR AND ROOF
