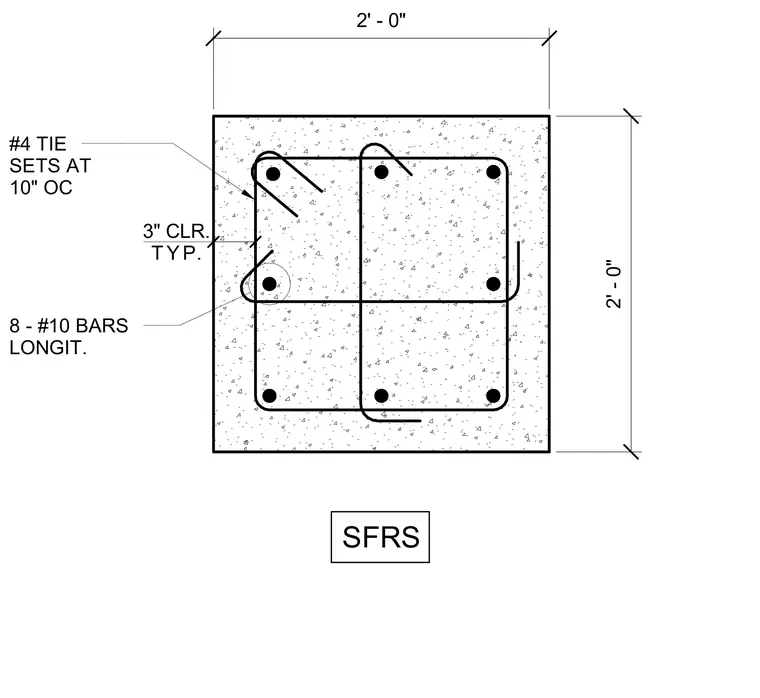

This structural detail shows a square cast-in-place concrete grade beam measuring two feet by two feet. The reinforcement consists of eight number ten longitudinal bars distributed within the section and enclosed by number four ties set at ten inches on center. A three-inch concrete clear cover is maintained typically around the perimeter.
8 - #10 BARS LONGIT. #4 TIE SETS AT 10" OC SFRS 3" CLR. T YP. 2' - 0" 2' - 0"
