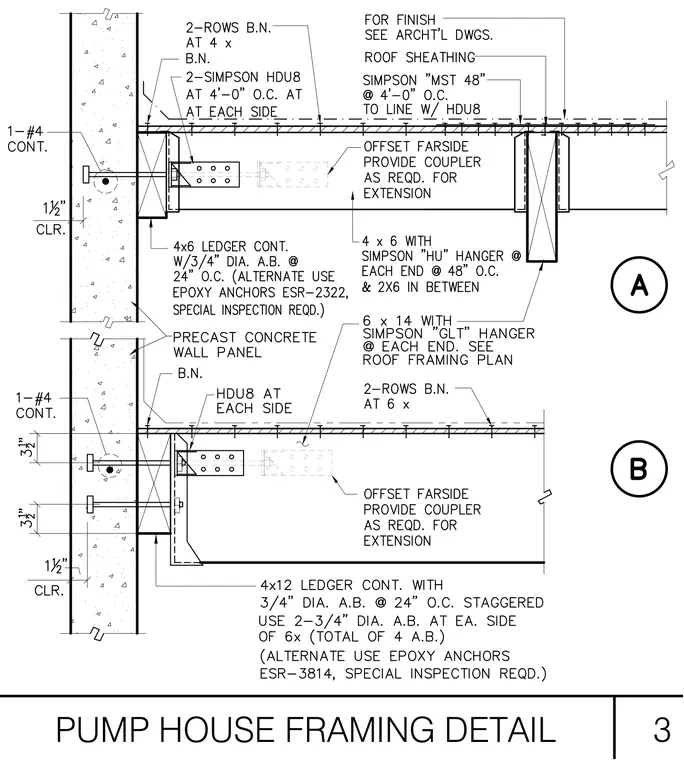

Precast concrete wall panels connect to continuous wood ledgers using staggered three-quarter-inch diameter anchor bolts spaced at twenty-four inches on center, with alternate epoxy anchors requiring special inspection. Simpson HDU8 hold-downs secure each side of the framing connection, paired with two rows of blocking. Roof sheathing ties into a Simpson MST48 strap aligned with the hold-down, while four-by-six framing utilizes Simpson HU hangers and six-by-fourteen beams use Simpson GLT hangers. Interior finish details follow architectural drawings.
