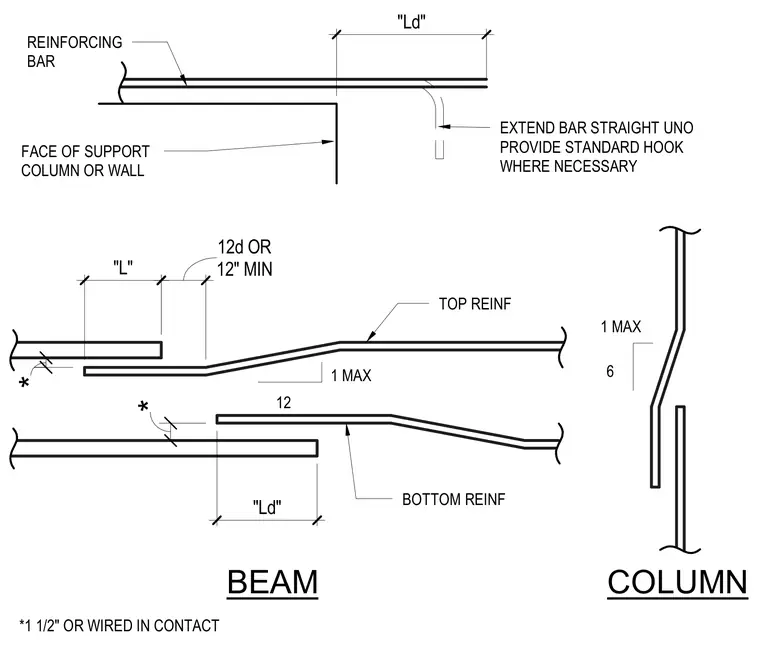

Reinforcing bars extend past the face of support columns or walls, maintaining development length "Ld" or providing standard hooks where necessary. Top and bottom beam reinforcement details show lap splices with maximum offset dimensions and wired-in contact spacing. Column reinforcement indicates vertical offset splices with specific clearance limits.
COLUMN *1 1/2" OR WIRED IN CONTACT FACE OF SUPPORT COLUMN OR WALL REINFORCING BAR BOTTOM REINF 1 MAX 12 6 TOP REINF 1 MAX EXTEND BAR STRAIGHT UNO PROVIDE STANDARD HOOK WHERE NECESSARY "Ld" "L" 12" MIN 12d OR * * "Ld" BEAM
