Interior Non-Bearing Partition Framing and Opening Schedule

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Bearing Walls Partitions Floors / Slabs Connections / Plates Roof / Floor Openings

Connections

Welded Connection

About this detail

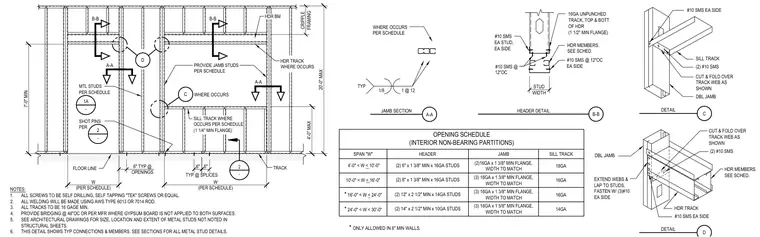

Cold-formed steel interior non-bearing partition assembly featuring head tracks, sill tracks, cripple framing, jamb studs, and header members sized per the opening schedule based on span width. Connections utilize self-drilling self-tapping sheet metal screws with number ten size fasteners spaced at twelve inches on center on each side, along with cut and fold track web details. All tracks are sixteen gauge minimum with one and one-quarter inch minimum flanges, and bridging is provided at forty-eight inches on center where gypsum board is omitted.
