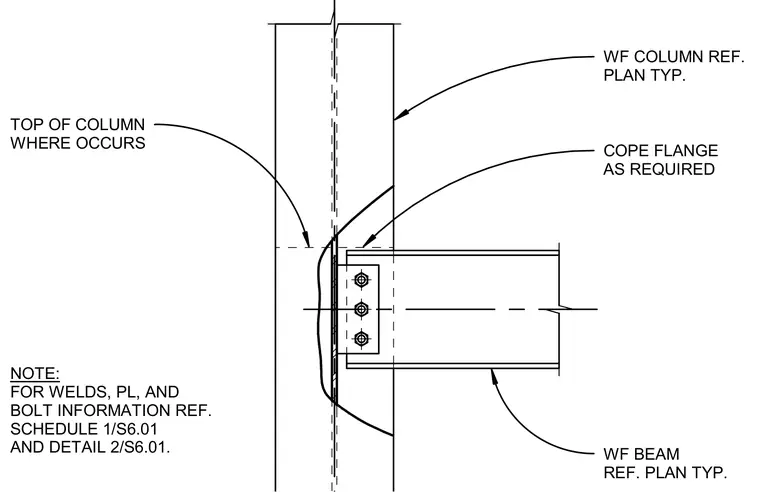

A wide flange beam frames into a wide flange column with a bolted connection referenced from structural plans. The top flange of the beam is coped as required to clear the column geometry at the top of the column location. Specific weld, plate, and bolt information is referenced to schedule 1/S6.01 and detail 2/S6.01.
WF COLUMN REF. PLAN TYP. COPE FLANGE AS REQUIRED WF BEAM REF. PLAN TYP. TOP OF COLUMN WHERE OCCURS NOTE: FOR WELDS, PL, AND BOLT INFORMATION REF. SCHEDULE 1/S6.01 AND DETAIL 2/S6.01.
