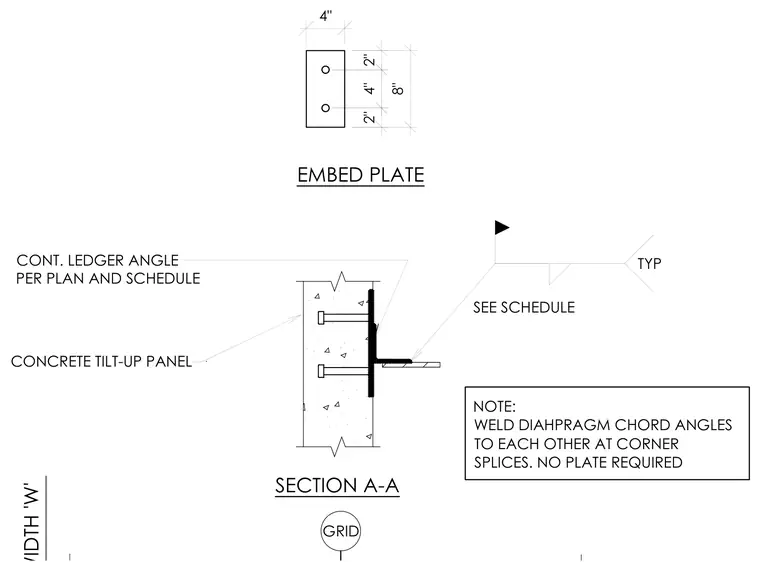

A continuous ledger angle connects to a structural embed plate cast into a concrete tilt-up panel with headed anchors. The embed plate is detailed with dimensions showing a width of 4 inches and a height of 8 inches, with two anchors aligned vertically. A continuous ledger angle is sized per plan and schedule, secured with fillet welds as indicated. Diaphragm chord angles are welded to each other at corner splices without requiring a plate, per the drawing notes.
SECTION A-A CONCRETE TILT-UP PANEL SEE SCHEDULE NOTE: WELD DIAHPRAGM CHORD ANGLES TO EACH OTHER AT CORNER SPLICES. NO PLATE REQUIRED CONT. LEDGER ANGLE PER PLAN AND SCHEDULE GRID EMBED PLATE 4" 2" 4" 2" 8" TYP
