Steel decking spans parallel to the supporting steel beams, featuring welded studs as required and spread deck where beams run parallel. A continuous number 3 reinforcing bar is wired to the studs typically to support welded wire fabric or reinforcement. Additional number 3 bars at six feet zero inches long are spaced at twelve inches on center at W24 and deeper beams. The steel deck bears on the steel beams with specified minimum clearances and side bearings per plan.

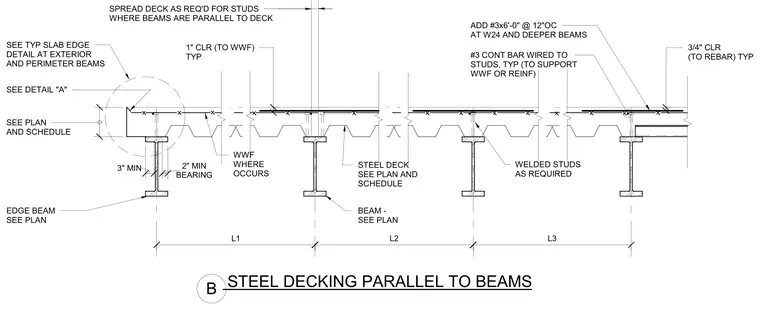

ADD #3x6'-0" @ 12"OC AT W24 AND DEEPER BEAMS STEEL DECKING PARALLEL TO BEAMS SPREAD DECK AS REQ'D FOR STUDS WHERE BEAMS ARE PARALLEL TO DECK STEEL DECK SEE PLAN AND SCHEDULE WELDED STUDS AS REQUIRED #3 CONT BAR WIRED TO STUDS, TYP (TO SUPPORT WWF OR REINF) EDGE BEAM SEE PLAN WWF WHERE OCCURS BEAM - SEE PLAN 1" CLR (TO WWF) TYP SEE DETAIL "A" SEE TYP SLAB EDGE DETAIL AT EXTERIOR AND PERIMETER BEAMS L1 L2 L3 3" MIN BEARING 2" MIN SEE PLAN AND SCHEDULE . 3/4" CLR (TO REBAR) TYP . B .
