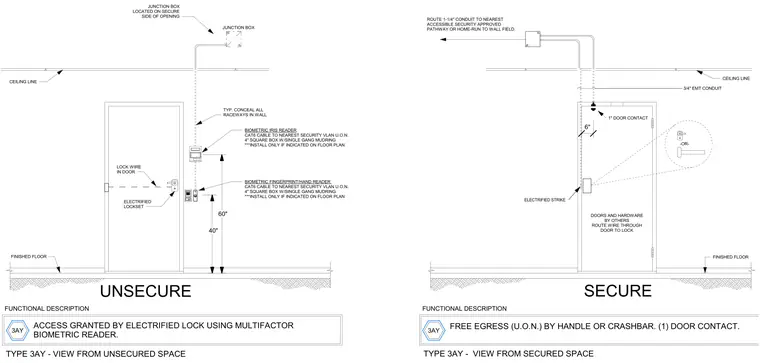

Security door elevations detail the installation of an electrified lockset, biometric fingerprint and iris readers, and door contacts connected via concealed raceways and electrical conduit. All raceways are concealed within the wall with a 3/4-inch electrical metallic tubing conduit running to a junction box located on the secure side of the opening. A 1-1/4-inch conduit routes to the nearest accessible security approved pathway or home-run to the wall field. Biometric readers mount to 4-square boxes with single-gang mud rings at specified heights, utilizing Cat6 cable connected to the nearest security virtual local area network unless otherwise noted. Doors and hardware are provided by others with lock wires routed through the door to the lock.
CEILING LINE FINISHED FLOOR JUNCTION BOX ELECTRIFIED LOCKSET CEILING LINE FINISHED FLOOR 1" DOOR CONTACT ACCESS GRANTED BY ELECTRIFIED LOCK USING MULTIFACTOR BIOMETRIC READER. FREE EGRESS (U.O.N.) BY HANDLE OR CRASHBAR. (1) DOOR CONTACT. TYPE 3AY - VIEW FROM UNSECURED SPACE TYPE 3AY - VIEW FROM SECURED SPACE JUNCTION BOX LOCATED ON SECURE SIDE OF OPENING LOCK WIRE IN DOOR 3/4" EMT CONDUIT FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION 6" DOORS AND HARDWARE BY OTHERS ROUTE WIRE THROUGH DOOR TO LOCK -OR- SECURE UNSECURE 3AY 3AY 40" TYP. CONCEAL ALL RACEWAYS IN WALL 60" ROUTE 1-1/4" CONDUIT TO NEAREST ACCESSIBLE SECURITY APPROVED PATHWAY OR HOME-RUN TO WALL FIELD. BIOMETRIC FINGERPRINT/HAND READER CAT6 CABLE TO NEAREST SECURITY VLAN U.O.N. 4" SQUARE BOX W/SINGLE GANG MUDRING ***INSTALL ONLY IF INDICATED ON FLOOR PLAN BIOMETRIC IRIS READER CAT6 CABLE TO NEAREST SECURITY VLAN U.O.N. 4" SQUARE BOX W/SINGLE GANG MUDRING ***INSTALL ONLY IF INDICATED ON FLOOR PLAN ELECTRIFIED STRIKE
