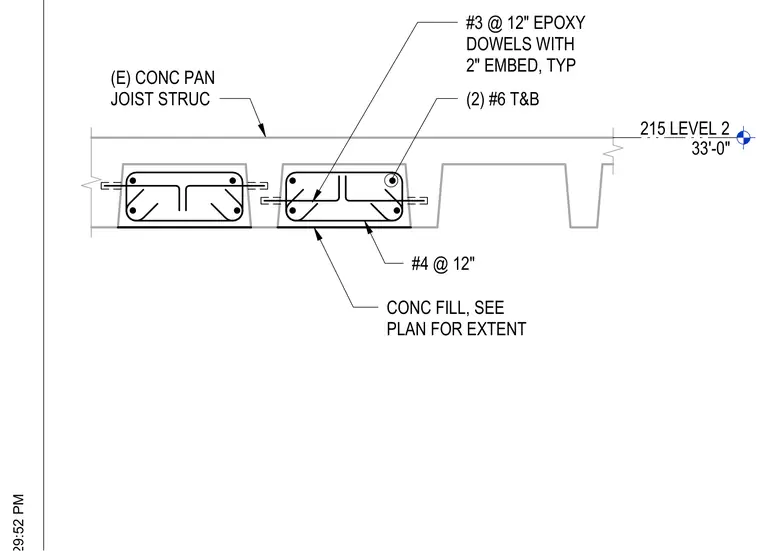

A Level 2 concrete pan joist collector at elevation 33'-0" features concrete fill where extent is per plan. Two number six top and bottom reinforcing bars run continuously through the joist assembly alongside number four bars spaced at twelve inches on center. Number three epoxy dowels with two-inch embedment are provided typically at the framing interface.
215 LEVEL 2 33'-0" CONC FILL, SEE PLAN FOR EXTENT #4 @ 12" (2) #6 T&B #3 @ 12" EPOXY DOWELS WITH 2" EMBED, TYP (E) CONC PAN JOIST STRUC
