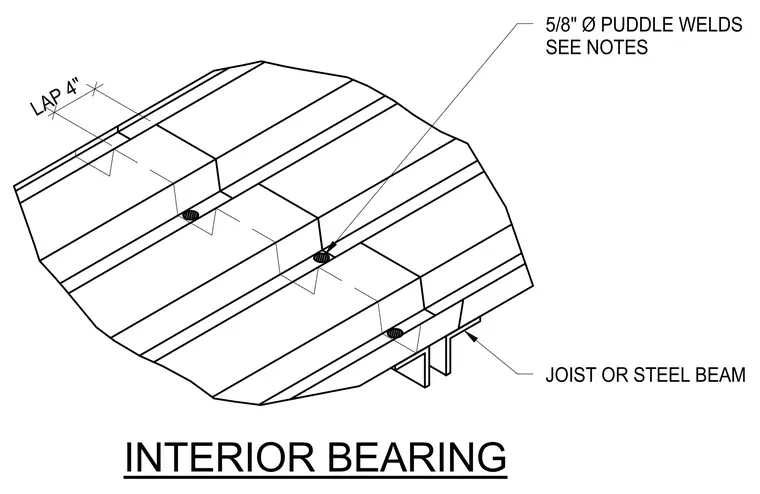

The metal deck bears on an interior joist or steel beam with a four-inch end lap specified. Five-eighths-inch diameter puddle welds secure the deck panels to the supporting structural member according to notes.
