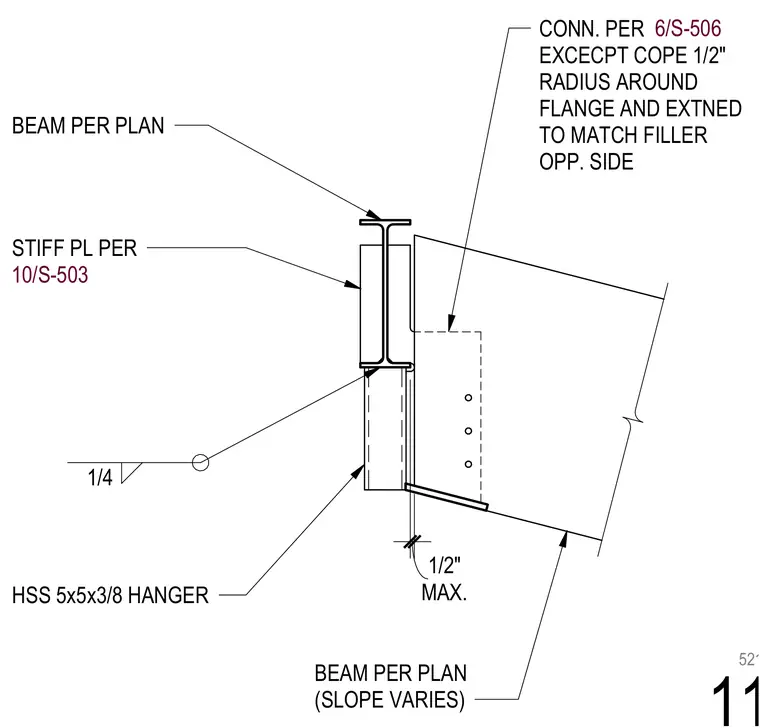

An HSS 5x5x3/8 hanger suspends a sloping beam per plan with a connection featuring a quarter-inch stiffener plate welded to the supporting beam web. The supported beam includes a one-half-inch radius cope around the flange and extends to match a filler on the opposite side, leaving a maximum one-half-inch clearance. A one-quarter-inch fillet weld secures the assembly.
BEAM PER PLAN CONN. PER EXCECPT COPE 1/2" RADIUS AROUND FLANGE AND EXTNED TO MATCH FILLER OPP. SIDE 6/S-506 HSS 5x5x3/8 HANGER 1/4 STIFF PL PER 10/S-503 BEAM PER PLAN (SLOPE VARIES) MAX. 1/2" 5213
