Structural · S-T6MAJ

Typical End Connection Detail for Cased Steel Core

Materials

Steel

Elements

Millwork / Casework Connections / Plates

Connections

Gusset Plate Bolted Connection

About this detail

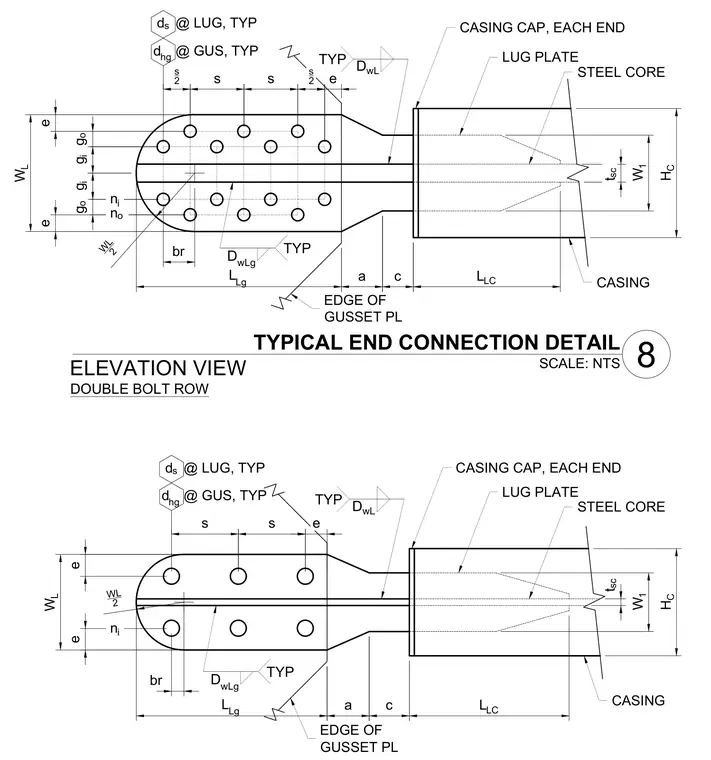

A structural end connection assembly features a steel core housed within a casing and lug plate. A gusset plate connects to the assembly using designated bolt spacings, edge distances, and weld sizes. Casing caps are provided at each end of the casing member.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
