Structural · S-T6DRH

HSS Column Base Plate Type BP-2

Materials

Concrete Steel Masonry / CMU

Elements

Columns Beams Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Beam-to-Column Bolted Connection Expansion / Slip Connection

About this detail

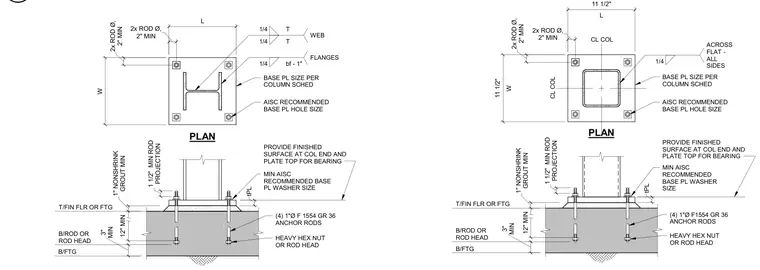

A structural steel hollow structural section column base plate connection is anchored to a concrete foundation. The assembly consists of a steel base plate sized per the column schedule welded to the column with quarter-inch fillet welds, set over a minimum one-inch layer of non-shrink grout. Four one-inch diameter ASTM F1554 Grade 36 anchor rods with heavy hex nuts or rod heads secure the plate, embedded a minimum of twelve inches into the concrete footing. A finished bearing surface is provided at the column end and plate top, incorporating American Institute of Steel Construction recommended base plate hole and washer sizes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
