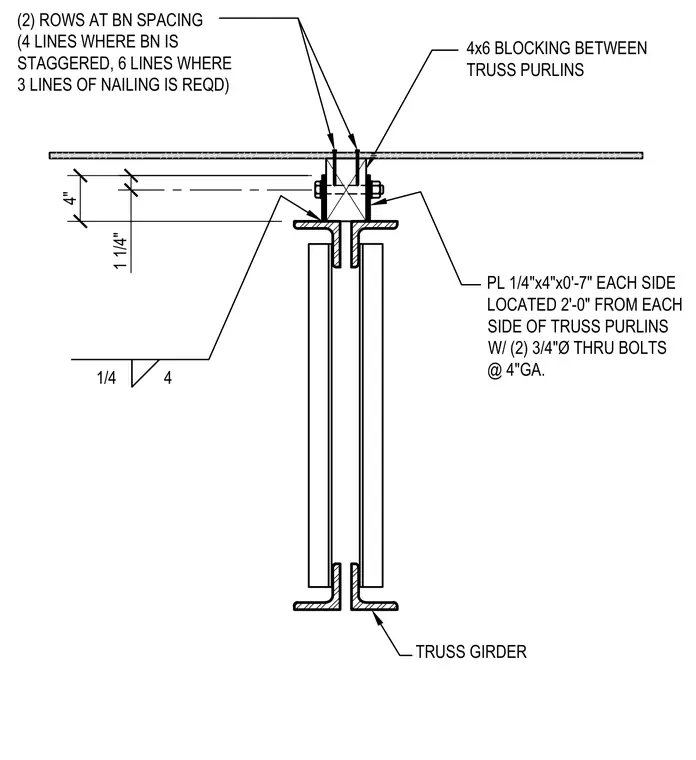

A 4x6 wood blocking is fitted between truss purlins and connected to a steel truss girder using 1/4-inch by 4-inch by 7-inch steel plates placed on each side. The connection is secured with two 3/4-inch diameter through-bolts spaced at a 4-inch gauge. Nailing is specified with two rows at toenail spacing, expanding to four lines where toenailing is staggered and six lines where three lines of nailing are required. A 1/4-inch fillet weld size is indicated with spacing and dimensional offsets.
TRUSS GIRDER 4x6 BLOCKING BETWEEN TRUSS PURLINS PL 1/4"x4"x0'-7" EACH SIDE LOCATED 2'-0" FROM EACH SIDE OF TRUSS PURLINS W/ (2) 3/4"Ø THRU BOLTS @ 4"GA. 4" 1 1/4" 1/4 4 (2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD)
