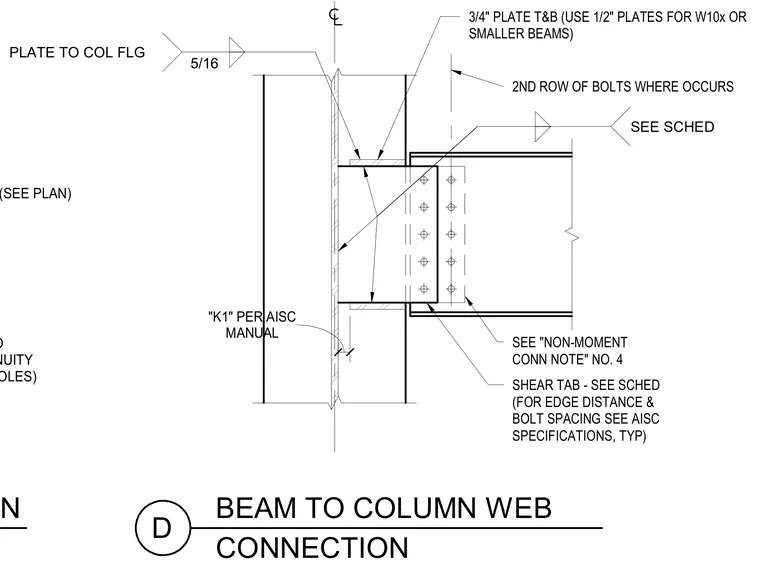

A beam frames into a rigid frame column web via a bolted shear tab and top and bottom plates. A three-quarter-inch plate is specified at the top and bottom, reduced to one-half-inch plates for W10x or smaller beams, welded to the column flange with a five-sixteenth-inch fillet weld. The shear tab is sized per the schedule, with edge distance and bolt spacing following AISC specifications, and a second row of bolts is provided where applicable. A K1 distance per the AISC manual is maintained, and the shear tab extends to the bottom-most continuity plate with no slotted holes.
BEAM TO COLUMN WEB D CONNECTION BEAM TO RIGID FRAME COLUMN SHEAR TAB - SEE SCHED (FOR EDGE DISTANCE & BOLT SPACING SEE AISC SPECIFICATIONS, TYP) SEE "NON-MOMENT CONN NOTE" NO. 4 3/4" PLATE T&B (USE 1/2" PLATES FOR W10x OR SMALLER BEAMS) BEAM (SEE PLAN) SEE SCHED 5/16 PLATE TO COL FLG MANUAL "K1" PER AISC EXTEND SHEAR TAB TO BOTTOM-MOST CONTINUITY PLATE (NO SLOTTED HOLES) 2ND ROW OF BOLTS WHERE OCCURS
