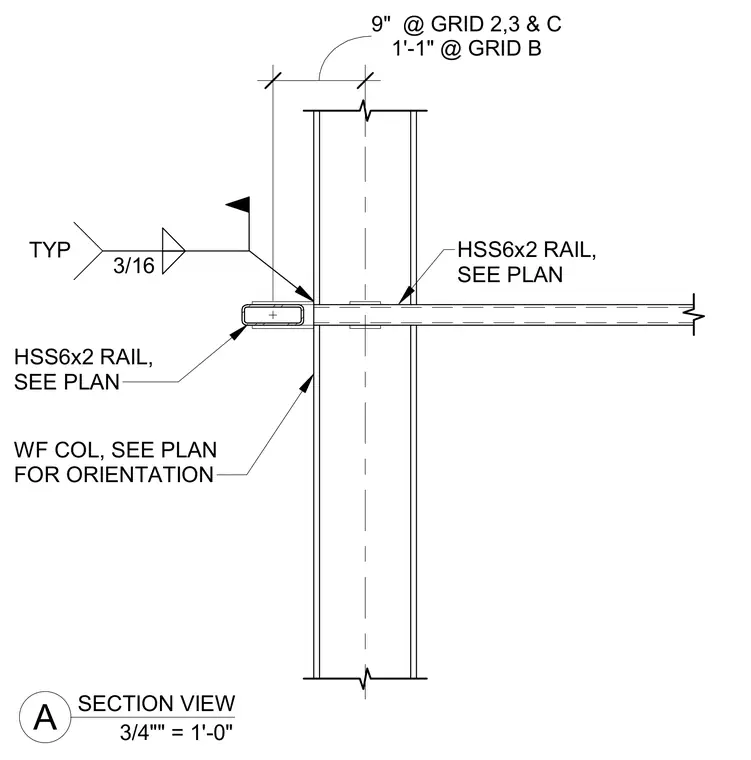

An HSS6x2 hollow structural section rail frames into a wide flange column. The rail passes through or intersects the column web, oriented and positioned per the architectural or structural floor plan. A three-sixteenth-inch typical fillet weld secures the connection assembly. Grid dimensions of nine inches and one foot one inch locate the framing relative to column grids.
1'-1" @ GRID B 9" @ GRID 2,3 & C WF COL, SEE PLAN FOR ORIENTATION 3/16 TYP HSS6x2 RAIL, SEE PLAN HSS6x2 RAIL, SEE PLAN A 3/4"" = 1'-0" SECTION VIEW
