Structural · S-T5Z4Z

Reinforced Concrete Shear Wall and Column Boundary Detail

Materials

Elements

About this detail

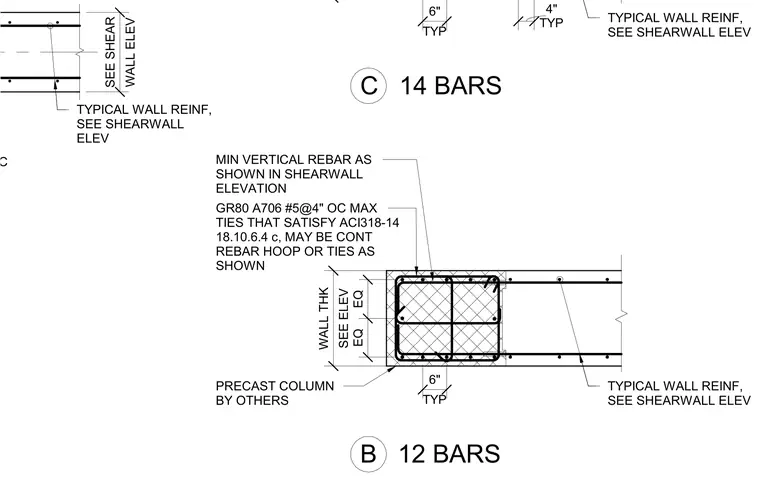

A reinforced concrete shear wall boundary element integrates a precast concrete column by others. Minimum vertical reinforcing bars continue as shown in the shearwall elevation. Grade 80 A706 number 5 ties are spaced at four inches on center maximum, satisfying ACI 318-14 section 18.10.6.4c, utilizing continuous rebar hoops or ties as specified. Typical wall reinforcement continues across the section at six inches on center.
