Structural · S-T5YDR

Beam Framing Into Concrete Wall Cast-In-Place Option Connection

Materials

Concrete Steel

Elements

Walls Floors / Slabs Decks Reinforcing

Connections

Rebar Splice / Development Deck Attachment

About this detail

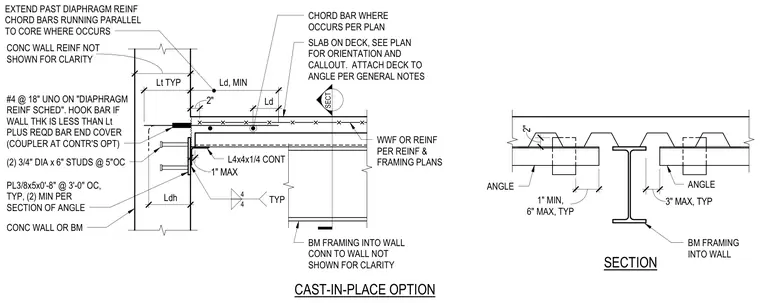

A beam framing connection into a concrete wall utilizes a cast-in-place option. A continuous L4x4x1/4 angle with 3/8-inch by 5-inch by 8-inch plates spaced at 3 feet on center is embedded into the concrete wall or beam, anchored by two 3/4-inch diameter by 6-inch studs spaced at 5 inches on center. The slab on deck bears onto the angle, with welded wire fabric or reinforcing placed per the framing plans. Chord bars and diaphragm reinforcing extend past the connection, utilizing number 4 bars at 18 inches on center unless noted otherwise, with hooks provided if the wall thickness is less than the development length plus required bar end cover. The supporting beam framing into the wall has standard clearances, and wall reinforcing is omitted for clarity.
