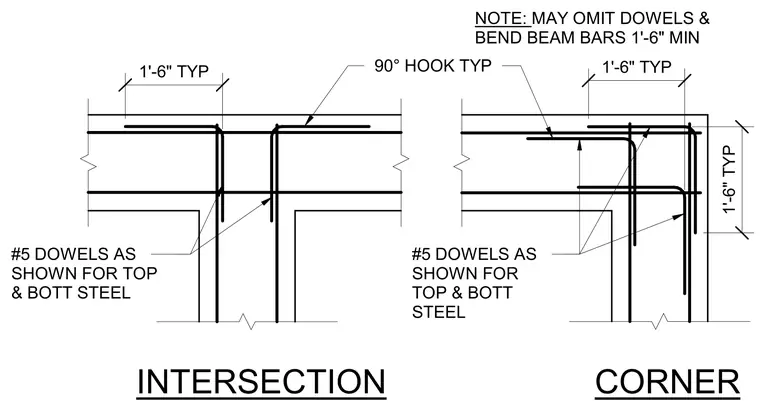

Reinforced concrete beam intersections and corners utilize number five dowels for top and bottom steel with ninety degree hooks extending one foot six inches typical. The corner condition permits omitting dowels by bending beam bars one foot six inches minimum.
CORNER NOTE: MAY OMIT DOWELS & BEND BEAM BARS 1'-6" MIN 1'-6" TYP INTERSECTION 90° HOOK TYP 1'-6" TYP #5 DOWELS AS SHOWN FOR TOP & BOTT STEEL 1'-6" TYP #5 DOWELS AS SHOWN FOR TOP & BOTT STEEL
