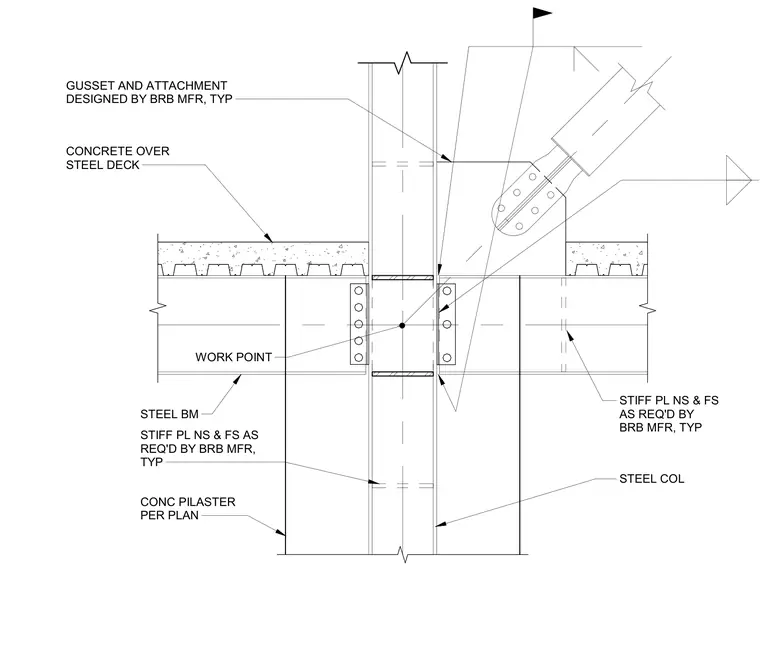

A buckling-restrained brace connects to a steel column and steel beam framing assembly with a gusset plate and bolted lug attachment. Stiffener plates are installed on the near side and far side of both the steel beam and steel column as required by the buckling-restrained brace manufacturer. Concrete over steel deck forms the floor slab adjacent to the steel column, which is integrated with a concrete pilaster per plan. A defined work point establishes the geometry for the gusset and attachment design.
WORK POINT GUSSET AND ATTACHMENT DESIGNED BY BRB MFR, TYP CONCRETE OVER STEEL DECK STEEL BM STIFF PL NS & FS AS REQ'D BY BRB MFR, TYP STEEL COL STIFF PL NS & FS AS REQ'D BY BRB MFR, TYP CONC PILASTER PER PLAN
