Structural · S-T5CXP

Concrete Wall and Footing Intersections with Rebar Details

Materials

Concrete

Elements

Columns Walls Floors / Slabs Arches Site / Paving

Connections

Rebar Splice / Development

About this detail

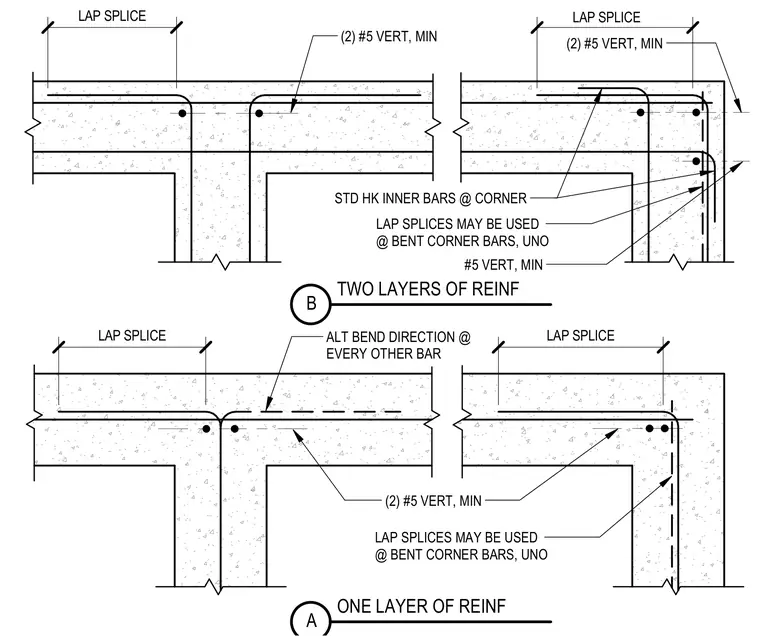

Concrete wall and footing intersections require specific lap splices and corner reinforcement configurations to ensure structural integrity. Vertical reinforcement consists of a minimum of two number five bars with alternating bend directions at every other bar. Standard hooks are provided for inner bars at corners, and lap splices may be used at bent corner bars unless noted otherwise. Details illustrate both single-layer and two-layer reinforcement conditions for wall junctions and corners.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
