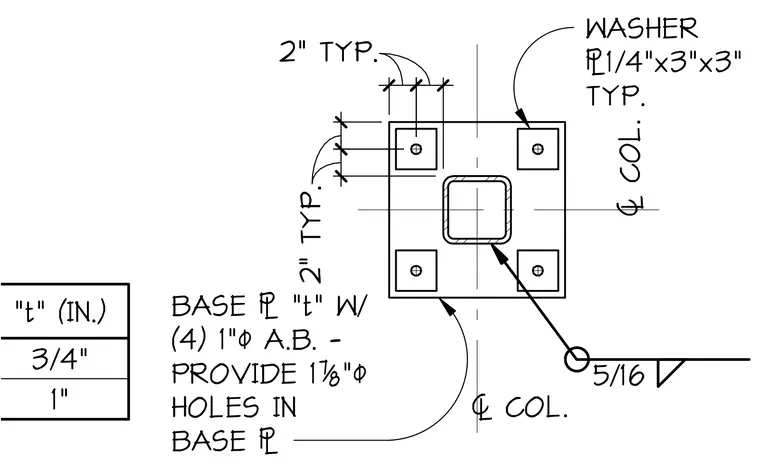

A square hollow structural section column bears on a base plate welded with a five-sixteenths inch fillet weld. The base plate is secured by four one-inch diameter anchor bolts with one and seven-eighths inch holes provided in the plate. Square plate washers measuring one-quarter by three by three inches are positioned at each anchor bolt location. A small table provides the thickness t of the base plate as either three-quarters of an inch or one inch.
5/16 + COL. BASE ' "t" W/ (4) 1") A.B. - PROVIDE 16") HOLES IN BASE ' 2" TYP. 2" TYP. + COL. 2" TYP. 2" TYP. "t" (IN.) 3/4" 1" WASHER '1/4"x3"x3" TYP.
