Structural · S-T57MC

Cantilevered HSS Column and Drift Track Connection

Materials

Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Windows Roofs Decks Arches Connections / Plates

Connections

HSS Connection

About this detail

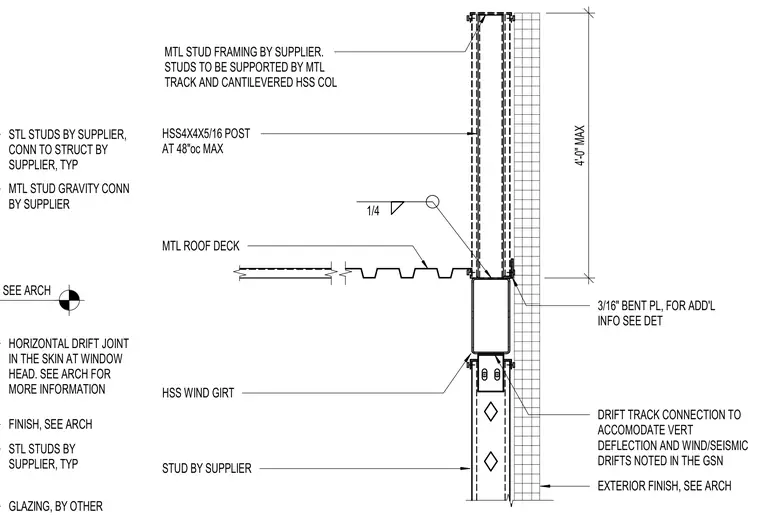

A cantilevered HSS4x4x5/16 hollow structural section post at forty-eight inches on center maximum is supported by a metal roof deck assembly. A three-sixteenths-inch bent plate connects the framing to accommodate vertical deflection and wind or seismic drifts. Metal stud framing and gravity connections are provided by the supplier. An HSS wind girt connects below with a drift track to accommodate skin movement at the window head.
