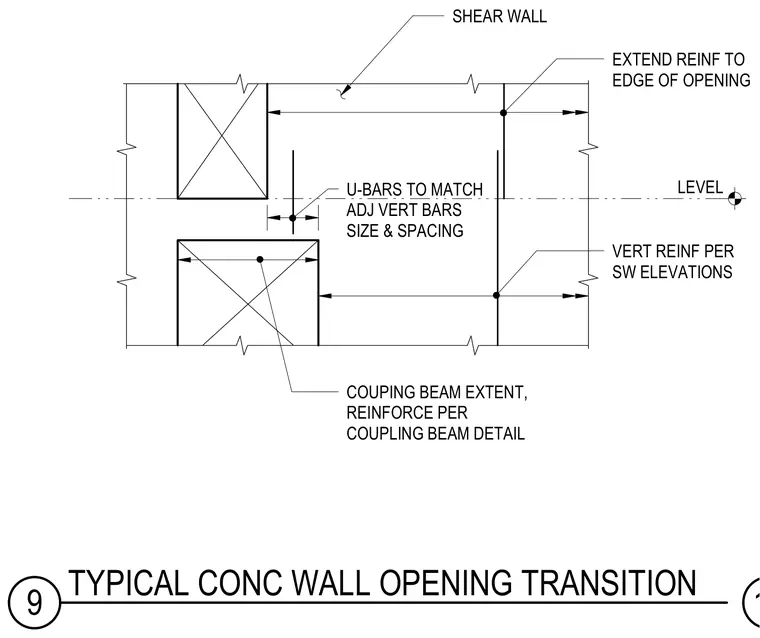

Concrete shear wall opening transition detailing the required reinforcing layout around wall openings. Vertical reinforcement extends to the edge of the opening per shear wall elevations, and coupling beam extents are reinforced per the coupling beam detail. U-bars are provided to match adjacent vertical bar size and spacing.
SHEAR WALL LEVEL EXTEND REINF TO EDGE OF OPENING VERT REINF PER SW ELEVATIONS U-BARS TO MATCH ADJ VERT BARS SIZE & SPACING COUPING BEAM EXTENT, REINFORCE PER COUPLING BEAM DETAIL 9 TYPICAL CONC WALL OPENING TRANSITION 10
