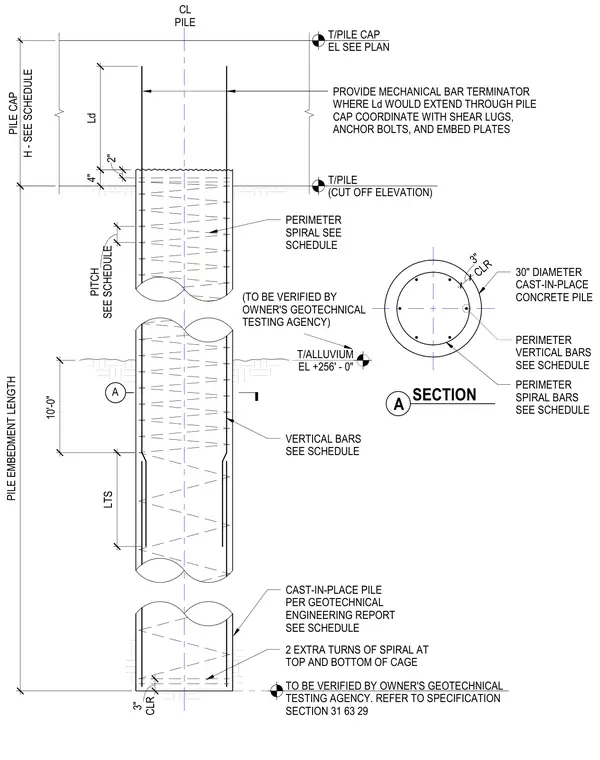

A thirty-inch diameter cast-in-place concrete tension pile connects to a pile cap. The assembly features vertical reinforcing bars and perimeter spiral reinforcement sized per schedule, maintaining a three-inch clear cover. Mechanical bar terminators are provided where development length extends through the pile cap, coordinating with shear lugs, anchor bolts, and embed plates. Two extra turns of spiral reinforcement are included at the top and bottom of the reinforcing cage. The pile embedment length and top of alluvium elevation are verified by the owner's geotechnical testing agency in accordance with specification section 31 63 29.
A CL PILE H - SEE SCHEDULE PILE CAP 4" Ld PROVIDE MECHANICAL BAR TERMINATOR WHERE Ld WOULD EXTEND THROUGH PILE CAP COORDINATE WITH SHEAR LUGS, ANCHOR BOLTS, AND EMBED PLATES T/PILE (CUT OFF ELEVATION) T/PILE CAP EL SEE PLAN SEE SCHEDULE PITCH 10'-0" PILE EMBEDMENT LENGTH CAST-IN-PLACE PILE PER GEOTECHNICAL ENGINEERING REPORT SEE SCHEDULE VERTICAL BARS SEE SCHEDULE CLR 3" LTS PERIMETER SPIRAL SEE SCHEDULE CLR 3" 30" DIAMETER CAST-IN-PLACE CONCRETE PILE PERIMETER VERTICAL BARS SEE SCHEDULE PERIMETER SPIRAL BARS SEE SCHEDULE TO BE VERIFIED BY OWNER'S GEOTECHNICAL TESTING AGENCY. REFER TO SPECIFICATION SECTION 31 63 29 2" A SECTION T/ALLUVIUM EL +256' - 0" (TO BE VERIFIED BY OWNER'S GEOTECHNICAL TESTING AGENCY) 2 EXTRA TURNS OF SPIRAL AT TOP AND BOTTOM OF CAGE
