Structural · S-T4V9K

X Cont Bottom Track

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

About this detail

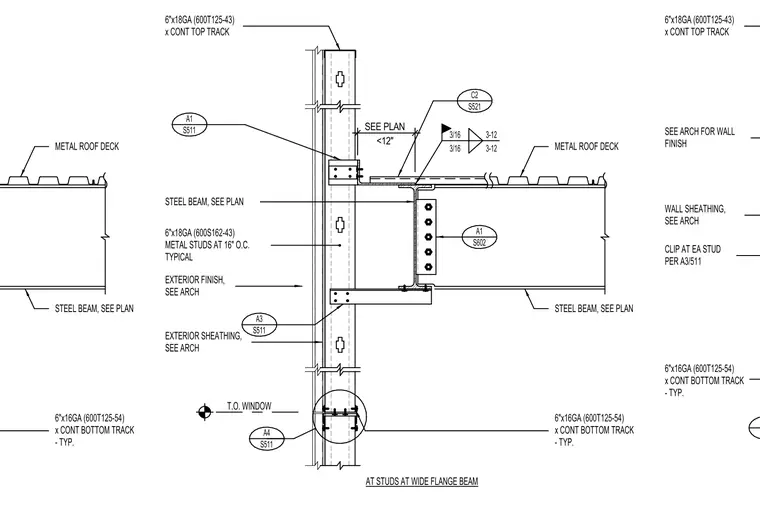

Cold-formed steel studs measuring six inches by eighteen gauge are spaced at sixteen inches on center and tied into continuous top and bottom tracks. The framing assembly interfaces with structural steel wide flange beams and metal roof deck. Connection clips are secured at each stud per engineering details, with exterior sheathing and finishes provided per architectural specifications.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
