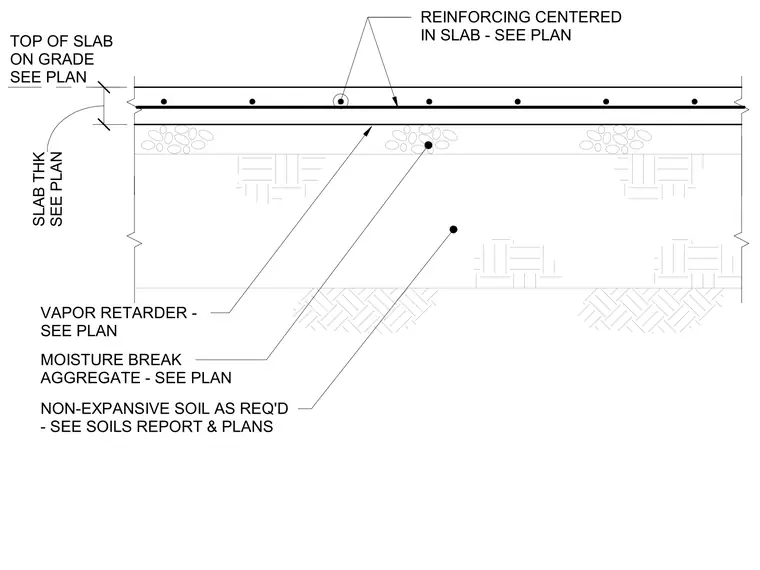

This structural section details a standard concrete slab on grade assembly over prepared subgrade. Non-expansive soil is placed and compacted as required by the soils report and plans. A moisture break aggregate layer rests beneath the slab, overlaid by a vapor retarder membrane. Reinforcing steel is centered within the concrete slab thickness as specified on the structural plans.
TOP OF SLAB ON GRADE SEE PLAN NON-EXPANSIVE SOIL AS REQ'D - SEE SOILS REPORT & PLANS VAPOR RETARDER - SEE PLAN MOISTURE BREAK AGGREGATE - SEE PLAN REINFORCING CENTERED IN SLAB - SEE PLAN SEE PLAN SLAB THK .
