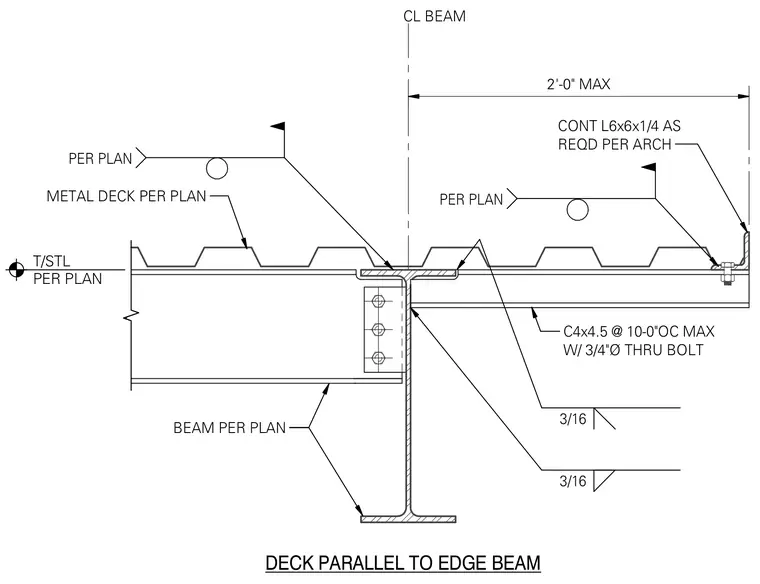

Metal deck runs parallel to the edge beam, bearing over a beam sized per plan with a top of steel elevation also per plan. A continuous C4x4.5 channel spaced at ten feet on center maximum connects with three-quarter-inch diameter thru bolts. A continuous L6x6x1/4 angle is provided as required per architectural drawings with a two-foot maximum overhang. Three-sixteenths-inch fillet welds secure the connection assembly.
PER PLAN DECK PARALLEL TO EDGE BEAM BEAM PER PLAN CL BEAM T/STL PER PLAN METAL DECK PER PLAN C4x4.5 @ 10-0"OC MAX W/ 3/4"Ø THRU BOLT 3/16 3/16 CONT L6x6x1/4 AS REQD PER ARCH 2'-0" MAX PER PLAN
